How Grace's Innovations Mitigate Risks and Enhance Safety
In the high-stakes environments where electricians and PLC programmers work, the risk of electrical hazards is ever-present. Despite stringent compliance measures, accidents still happen, leading to injuries, fatalities, downtime, and hefty fines. Understanding these hazards and implementing robust safety solutions is crucial.
This blog highlights ten critical workplace electrical hazards and how GracePorts, GracePESDs, and GraceSense products can mitigate these risks, reducing the margin of error and enhancing safety.
Industrial facilities can create safer work environments by leveraging Grace Technologies' advanced technology and design. These solutions not only address immediate safety concerns but also enhance overall efficiency and compliance with industry standards.
Below, we delve into the top ten electrical hazards in the workplace and detail how specific Grace Technologies products provide effective mitigation strategies.
1. Arc Flash

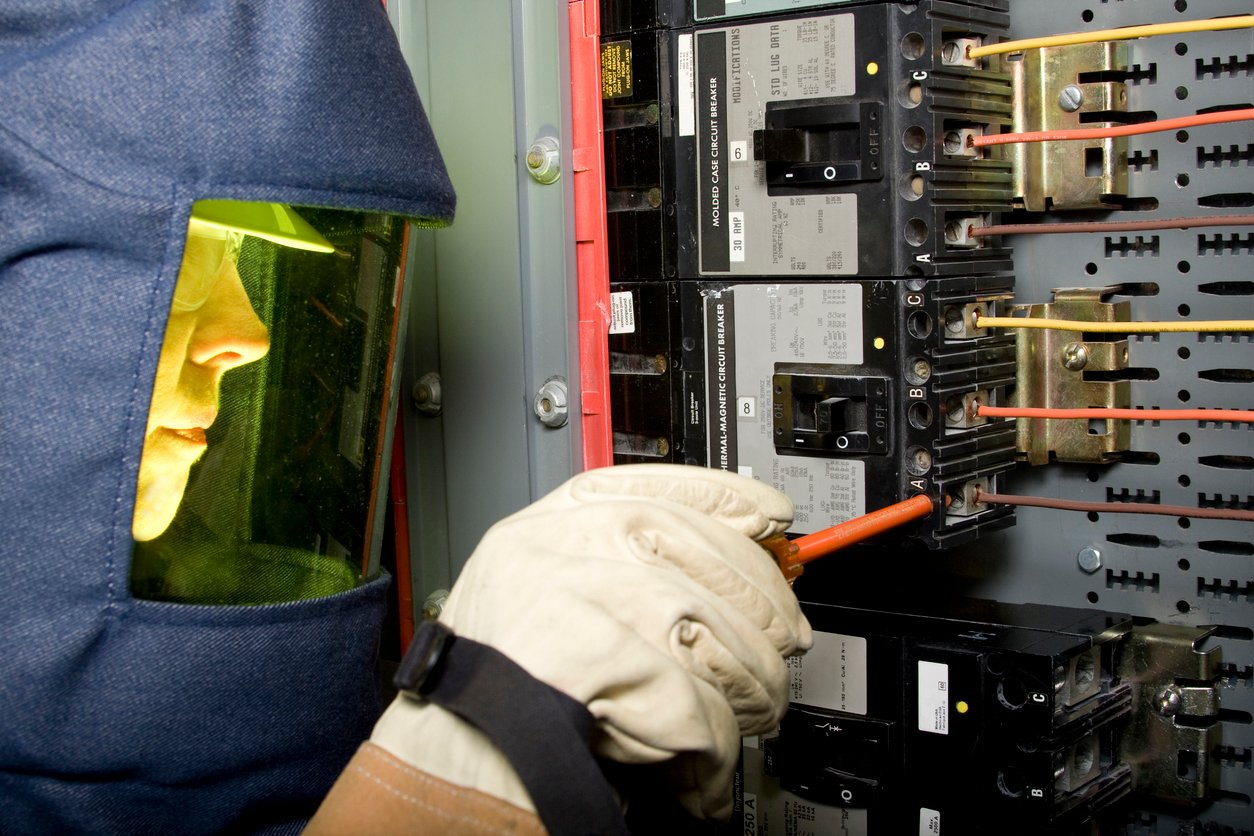

- Hazard: Arc flashes can cause severe burns, injuries, and fatalities due to the sudden release of electrical energy through the air. Electrical incidents, including arc flashes, contribute to significant injuries and fatalities each year. Arc flash temperatures can exceed 35,000 °F, causing serious harm to nearby individuals and equipment.
- Mitigation: GracePorts provide through-door access to PLCs and other control systems, reducing the need to open panel doors and minimizing the risk of arc flashes. Permanent Electrical Safety Devices (PESDs) enable safe verification of voltage presence and absence without opening electrical panels, significantly reducing the risk of arc flash incidents during maintenance.
2. Electrical Shock
- Hazard: Contact with live electrical parts can cause severe injuries or death from electrical shock. In 2020, 1,610 nonfatal electrical shock injuries were reported. Electrical shocks are a leading cause of workplace injuries in electrical maintenance.
- Mitigation: PESDs provide LED voltage presence indication and allow for absence of voltage testing, reducing the risk of contact with live parts. They comply with NFPA 70E standards, ensuring safer maintenance practices. The GraceSense Hot Spot Monitor continuously monitors temperatures and identifies potential hot spots, helping prevent accidental contact with live electrical parts by eliminating the need for manual inspections.
3. Live Electrical Parts Exposure
- Hazard: During maintenance, electricians may be exposed to live parts, increasing the risk of injury. The median number of days away from work for direct exposure to electricity greater than 220 volts was seven, highlighting the severe impact on productivity and safety.
- Mitigation: GracePorts allow external access to control panels, enabling safe maintenance without exposing live parts. This reduces the risk of injury and improves safety compliance. The Hot Spot Monitor continuously monitors and identifies hot spots and reduces the need for direct exposure to live electrical parts during routine IR thermography inspections.
4. Inadequate Lockout/Tagout (LOTO) Procedures
- Hazard: Failure to properly de-energize equipment before maintenance can lead to accidental energization. Compliance violations can result in substantial fines, with OSHA penalties reaching up to $156,259 per violation for willful or repeated offenses. LOTO violations are among the most common safety infractions.
- Mitigation: PESDs ensure that equipment is properly de-energized and safe to work on by providing clear voltage presence indication and absence of voltage test points compatible with adequately rated portable test instruments.
5. Improper Use of Test Instruments
- Hazard: Using inadequately rated or malfunctioning test instruments can lead to inaccurate readings and accidents. Nonfatal electrical injuries can result in significant downtime, with the median number of days away from work being three. Accurate testing is crucial to preventing electrical incidents.
- Mitigation: PESDs ensure reliable voltage presence and absence testing, reducing the risk of improper test instrument use. Test point PESDs are listed to UL 61010, ensuring their reliability and safety in industrial environments.
6. Dust and Moisture Contamination
- Hazard: Environmental contaminants can cause electrical failures, leading to hazards and equipment downtime. Industries with high contaminant exposure often face more frequent electrical issues. Contaminants can cause short circuits and equipment degradation.
- Mitigation: The GracePort MagView housing offers robust environmental protection (UV, IP66, IP69K), shielding internal components from dust and moisture. This ensures the longevity and reliability of electrical systems in contaminated environments.
7. Insufficient Insulation or Isolation
- Hazard: Inadequate separation of electrical components can lead to shorts, shocks, and equipment failures. Electrical hazards account for a significant portion of workplace injuries and impact productivity and safety. Proper insulation and isolation are critical for preventing electrical incidents.
- Mitigation: GracePort provides external access to control components, reducing the need to open panels and potentially disturbing insulation or isolation setups.
8. Overloaded Circuits
- Hazard: Exceeding the capacity of electrical circuits can cause overheating, fires, and equipment damage. Overloaded circuits are a common cause of electrical fires in industrial settings, leading to significant safety hazards and equipment loss.
- Mitigation: True to its name, Hot Spot Monitor monitors temperatures at critical connection points, helping to identify potential overloads before they result in fires or equipment damage.
9. Improper Grounding
- Hazard: Faulty grounding can lead to electrical shock and equipment failure. Proper grounding is crucial for safety, yet improper grounding remains a common issue in industrial settings, leading to numerous electrical incidents.
- Mitigation: Voltage indicator PESDs provide a visual LED indication for improper grounding, reducing the risk of electrical shock and ensuring the safety and reliability of electrical systems. Hot Spot Monitor detects temperature anomalies that may indicate grounding issues, ensuring proactive maintenance.
10. Human Error
- Hazard: Mistakes during electrical work due to complex procedures or inadequate tools can lead to accidents. Human error is a leading cause of electrical incidents, underscoring the need for simplified and safe procedures. Simplifying tasks and providing adequate tools are essential for reducing errors.
- Mitigation: GracePort provides through-door access to control systems and simplifies maintenance tasks, reducing the potential for human error. Its user-friendly design ensures that workers can safely and efficiently perform necessary tasks. PESDs simplify complex electrical tasks and provide clear, safe procedures, significantly reducing the risk of human error during electrical maintenance. GraceSense Hot Spot Monitor automates monitoring and alerts, reducing the reliance on manual procedures and minimizing the risk of human error.
The Importance of Going Beyond Compliance
While compliance with electrical safety standards like NFPA 70E is crucial, it is not always sufficient to prevent all hazards due to the margin of human error. Statistics show that even the most compliant organizations can experience electrical injuries, fatalities, and significant downtime.
Implementing permanent solutions like GracePort, GracePESDs, and GraceSense products can significantly reduce the risk, though it is important to acknowledge that safety is about risk reduction, not elimination.
By investing in advanced safety solutions, organizations can protect their workers, minimize downtime, and avoid costly fines, ultimately fostering a safer and more productive work environment.
