How it Works: Voltage Presence Indicator

Posted by Nick Schiltz on May 1

Addressing the Hidden Dangers in Electrical Systems

In many industrial and commercial settings, maintaining electrical safety is crucial. However, one often overlooked aspect is the presence of voltage in electrical panels that can pose severe risks when undetected.

Situations where voltage indicators are not installed are prime for severe hazards, including electrical shock, arc flash incidents, and the inadvertent activation of machinery while maintenance work is in progress. These risks can lead to injuries or even fatalities. The installation of reliable safety mechanisms to detect the presence of voltage can significantly mitigate these risks, promoting a safer working environment.

The Role of Voltage Indicators in Preventing Electrical Hazards

Voltage indicators are low-cost, highly effective solutions designed to enhance safety by providing clear visibility of voltage presence directly from an electrical panel's exterior. This simple yet critical functionality allows personnel to determine if voltage is present without having to expose themselves to potential electrical hazards.

How Do Voltage Indicators Work?

Voltage indicators are Permanent Electrical Safety Devices (PESDs) that utilize a high impedance voltage detection circuit for each phase. These circuits are designed to sense the AC/DC voltage and illuminate LEDs to indicate the presence of voltage.

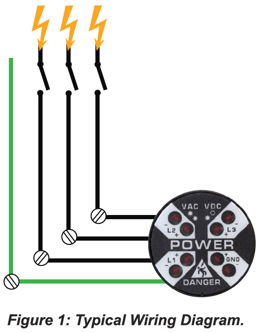

The process begins when current flows through at least two of these circuits, allowing the LEDs to light up. This operation is pivotal in ensuring that workers are alerted to live circuits within their working environment. Figure 1 depicts the basic setup of a 480 VAC 3-Phase system as used in most voltage indicator applications.

Voltage Indicator Functionality

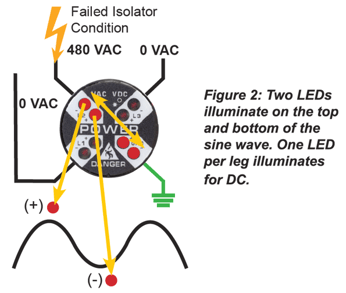

Each voltage detection circuit within the indicator includes two LEDs: one lights up during the positive half of the AC sine wave, and the other during the negative half. The unique configuration ensures that voltage presence is indicated by the illumination of multiple LEDs, enhancing visibility and safety. Figure 2 demonstrates how LEDs illuminate in response to AC sine waves.

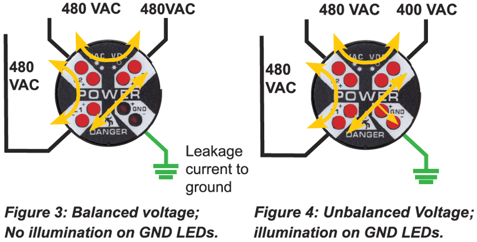

Under normal conditions, where the voltages are balanced across phases, LEDs indicating ground (GND) connection will not light up. However, in cases of voltage imbalance or phase loss, these GND LEDs become crucial indicators. Figures 4 and 5 demonstrate balanced and imbalanced phase conditions and the LED response.

For scenarios where there is an imbalance, the GND LEDs light up according to the degree of imbalance, providing an immediate visual cue that something is amiss, which could potentially prevent hazardous situations.

High Resistance Ground System

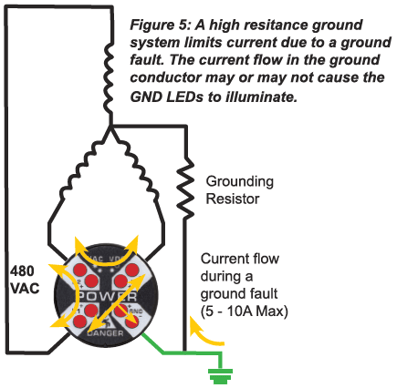

In environments with high resistance ground (HRG) systems or ungrounded systems, the operation of voltage indicators slightly varies. In HRG systems, ground currents induced by faults can cause GND LEDs to illuminate, which does not necessarily indicate a ground fault but rather the presence of stray voltages. Figure 5 shows the indicator response in HRG systems.

Ungrounded Systems

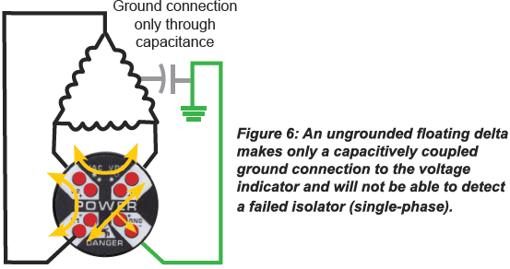

In ungrounded systems, the lack of a hardwired ground connection limits the functionality of voltage indicators. This setup necessitates additional verification for ground connections to ensure safety. Figure 6 illustrates the challenges with ungrounded systems.

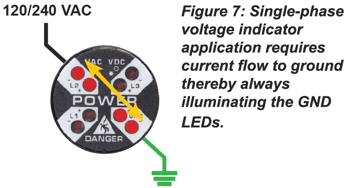

LED illumination means that voltage exists. Voltage does not discriminate, so neither does a voltage indicator. A safe ground reference for the GND leg of the voltage indicator ensures that the LEDs illuminate in an isolator failure or single-phase condition (Figures 2 & 7, respectively).

Without a ground connection, there would be no path to complete the LED illumination circuit. If the GND LEDs do not illuminate after installation, pulling a fuse or disconnecting one voltage indicator lead wire should allow current flow to the ground thereby testing the integrity of the ground connection.

About Voltage Indicator PESDs

Voltage indicators are self-powered, UL listed, and permanently installed devices that visually alert the presence of voltage with flashing or non-flashing, redundant LED indication lights.

Typically hardwired to the load side of an electrical feeder or a disconnect switch, voltage indicators illuminate whenever hazardous voltage is present in any individual phase and can assist in verifying voltage presence in addition to OSHA’s requirements in 29 CFR
1910.147.

View the complete application not for "How Voltage Indicators Work" here.

Voltage Indicators and Beyond

While voltage indicators are invaluable for indicating the presence of voltage, they should not be relied upon to confirm the absence of voltage. For tasks requiring verification of a de-energized state, such as during Lockout/Tagout (LOTO) procedures, additional tools like the UL Listed ChekVolt are necessary.

The ChekVolt is a unique PESD that combines voltage indicators with touch-safe and multimeter-compatible high impedance protected test points, compliant with NFPA 70E 120.6(7). This device ensures that a qualified person can safely perform an absence of voltage test.
