Q: What are the dimensions for Voltage Indicators?

A: See the below for dimensions of the various series of Voltage Indicators:

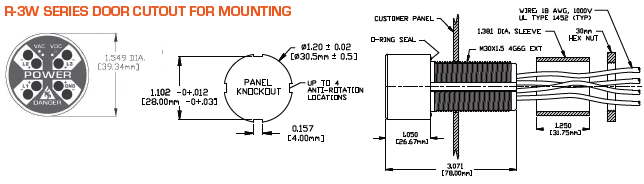

R-3W, R-3W-SR, R-3W2, R-3W-DC:

R-3W-KB, R-3W-SR-KB, R-3W2-KB, R-3W-DC-KB:

_____________________________________________________________________________

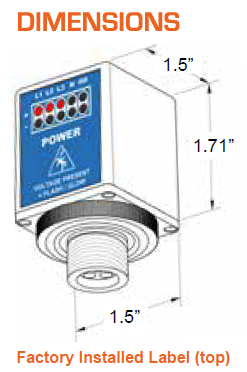

R-3D2, R-3D2-SR, R-3D2-SR-W5, R-3D2-W5:

R-3F2 Series:

_____________________________________________________________________________

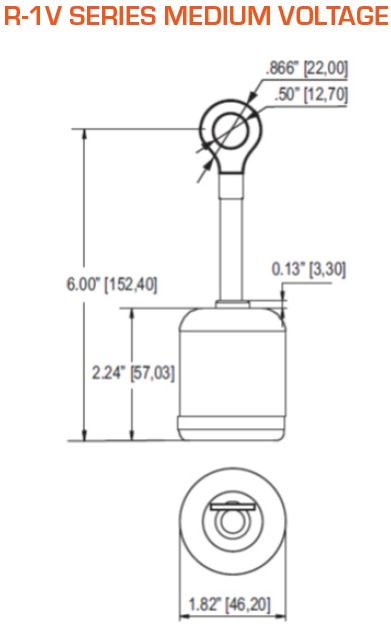

R-1V Series:

For further information please contact sales@gracetechnologies.com.
