Q: Is there a way to connect an external high-temp alarm / warning light?

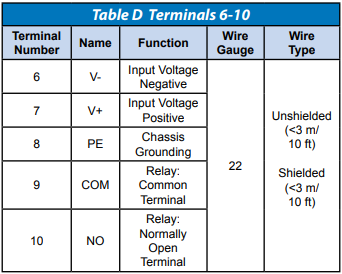

A: Yes. When the unit goes into alarm mode it also trips an external relay that can be connected to a horn / light on terminal 10 of the unit. The HSM module has a 2A Normally Open (N.O.) output contact that can be configured to close when any of your program temperature thresholds is exceeded. See below for more information.
![HSM Terminals 6-10 for Alarm](https://www.graceport.com/hubfs/HSM%20Terminals%206-10%20for%20Alarm.png?t=1537218082478)
