      GracePort® Thru-door Extended Antenna (2.4GHz) Component Datasheet

      Enhance your panel’s wireless connectivity

      The GracePort® thru-door antenna extends an existing radio network to the outside of a panel using a coaxial SMA (SubMiniature version A) connector. This GracePort® 2.4GHz extended antenna enhances your panel’s wireless signal reception and strength through a rugged and environmentally protected UL recognized housing.

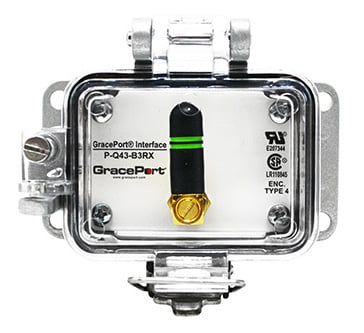

      P-Q43-B3RX_001

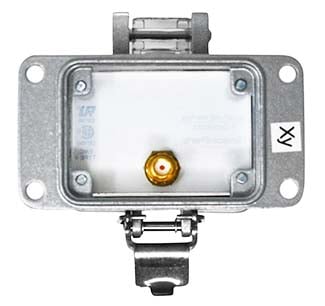

      P-Q43-B3RX_007

      Features & Benefits:

      • Passive device that extends your panel’s existing radio network to the outside of the cabinet.
      • Enhance signal strength and reception when the antenna is brought outside the cabinet using a hardwired connection.
      • Single antenna housed in an environmentally rated GracePort housing that protects antenna from harsh industrial contaminants and physical damage.
      • Ability to connect any 2.4GHz radio network using a SMA connector.

      Part Number pictured: P-Q43-B3RX

      Component Datasheet: Thru-door Extended Datasheet
